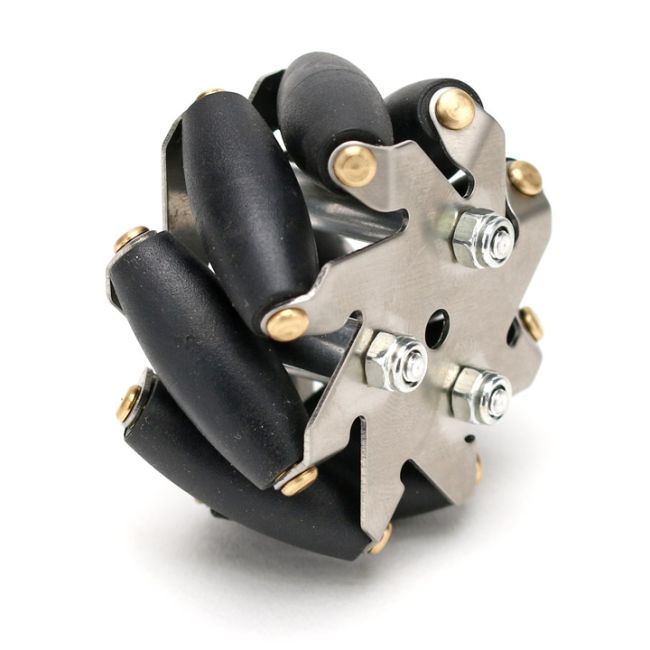

48mm steel Mecanum wheel (left) (14209L)
The 48mm steel mecanum wheel is the smallest size mecanum wheel in all of our mecanum wheels, it includes 2 left wheels and 2 right wheels, it has the compatible brass hub. You can use the hub to connect your DC motor.
3MM/4MM/5MM diameter for the brass hub for your choice, each wheel is comprised of 8 TPR rollers, these axles and rollers are sandwiched between two steel plates, use these mecanum wheels on your robot, it can be able to forward/backward movement, but also side to side.
Using rollers set on 45 degree rotational axis parallel to the main rotational axis of the wheel, all of you need to do is to add your drive motors, controller boars and batteries.
€ 19,95
Beschikbaarheid:
Op voorraad
SKU
10812
The 48mm steel mecanum wheel is the smallest size mecanum wheel in all of our mecanum wheels, it includes 2 left wheels and 2 right wheels, it has the compatible brass hub. You can use the hub to connect your DC motor.
3MM/4MM/5MM diameter for the brass hub for your choice, each wheel is comprised of 8 TPR rollers, these axles and rollers are sandwiched between two steel plates, use these mecanum wheels on your robot, it can be able to forward/backward movement, but also side to side.
Using rollers set on 45 degree rotational axis parallel to the main rotational axis of the wheel, all of you need to do is to add your drive motors, controller boars and batteries.
- Diameter: 48mm
- Width: 25.5mm
- Number of rollers: 8
- Number of plates: 2 Body
- Material: Stainless Steel
- Roller Material: TPR
- Length of roller: 25.5mm
- Net weight: 56g
- Load Capacity: 1kg
| SKU | 10812 |
|---|---|
| EAN | 4571398311567 |
| Kleur | Anthracite |
| Merk | Nexus Robot |
| Breedte cm | 2.55 |
| Diameter cm | 4.8 |
| Gewicht | 0.050000 |
| Land van productie | China |
